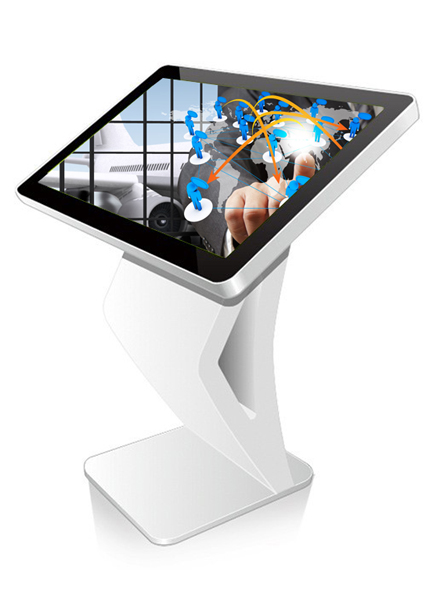

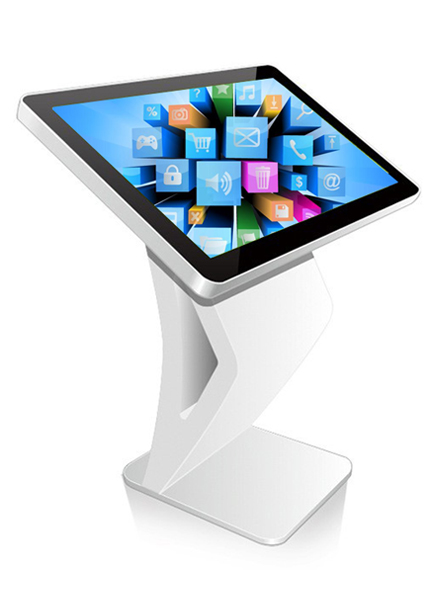

Table Touch All in One

Elegant appearance of high-end atmospheric HD display color vivid

Aluminum alloy wire drawing process, ultra-narrow design, unique arc cutting technology, high-end

atmosphere .in Full HD 1920 x 1080 & 3810 x 2160 resolution with 178 degrees viewing angle, high

contrast and brightness, 3D digital noise reduction, , Ghosting and other distortion, making the

display more clear, stable, more vivid colors

User-friendly design and maintenance is simple

◇ Built-in industrial motherboard, low power consumption, good heat dissipation, stable performance

◇ Computer power from the start, eliminating the cumbersome switch machine operation

◇ Built-in WIFI module, easy to connect to the network

◇ All major accessories are open maintenance window to facilitate after-sales maintenance

Smart touch operation is fluent

Multi-point infrared touch technology, with fast response, anti-glare, free drive, plug and play

excellent performance, can be very smooth support handwriting recognition input.

Touch software readily available

Combined with a variety of touch software, so that your product into a multimedia center and

information and information platform, illustrations, fashionable, just gently touch, you can give

you absolutely different information experience and fashion sense.

Specification

Product Specifications
Model	ZX-543	ZX-549	ZX-555	ZX-564
Panel Size	43”	49”	55”	65”
Resolution	1920 x 1080 1080P	1920 x 1080 1080P	1920 x 1080 1080P	1920 x 1080 1080P
Visual angle L/R	178°/178°	178°/178°	178°/178°	178°/178°
Brightness	450 cd/m²	450 cd/m²	500 cd/m²	500 cd/m²
Display Area	940.90(H)x523.26(V)mm	1073.78(H)x604(V)mm	1207(H)x678(V)mm	1428(H)x803(V)mm
Contrast ratio	4000:1	4000:1	4000:1	4000:1
Color	16.7M	16.7M	16.7M	16.7M
Operating Voltage	AC 100V-240V, 50/60 Hz	AC 100V-240V, 50/60 Hz	AC 100V-240V, 50/60 Hz	AC 100V-240V, 50/60 Hz
Power Consumption	75W	100W	170W	240W
Installation Type	Floor Standing	Floor Standing	Floor Standing	Floor Standing
Safty protection	Safty Lock Design	Safty Lock Design	Safty Lock Design	Safty Lock Design
Working Temperature	0℃-40℃	0℃-40℃	0℃-40℃	0℃-40℃
Storage Temperature	-20℃-60℃	-20℃-60℃	-20℃-60℃	-20℃-60℃
Operation System
Touch Screen	IR /CapacitiveTouch
Android 4.4(CPU) Option	Allwinner A31 quad-core 1.6GHz RK 3188 quad-core 1.6GHz RK3288 quad-core 1.6GHz
RAM / Internal Memory	DDR3 2GB / NAND FLASH 8G
Windows 7 /10 Option	I3/I5/I7 4G RAM +500G HDD
External Memory	SATA/USB/SD/CF card	SATA/USB/SD/CF card	SATA/USB/SD/CF card	SATA/USB/SD/CF card
HDMI Input	1	1	1	1
VGA Input	1	1	1	1
