Broad product portfolio provides the right solution
◇From small format touchscreen displays for kiosks to massive video walls and everything in between,
◇Zhongxin’s broad product offering means the right solution for each application.
◇Video processing,media player solutions, and mounting accessories make
◇Zhongxin a one-source option for display solutions.
Share This Product

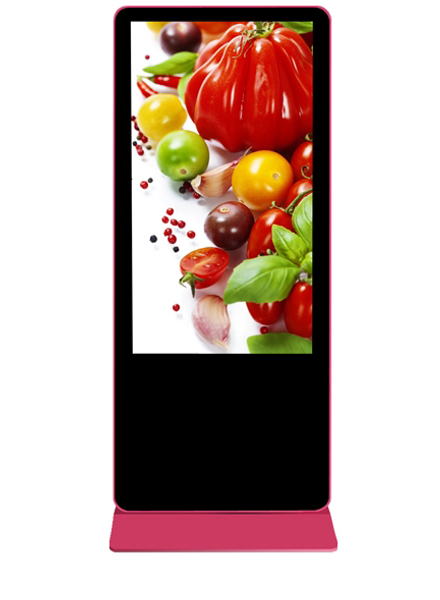

Floor Standing Digital
◇Based on Android 4.4 system, all the android application Apk, software automatic restoration supported.
◇Real time management and controlling, browser, breakpoint upload and download, multi-mode upload supported.
◇Updating programs (video, pictures, texts, PPT etc.) through the Internet supported.
◇Auto power on/off, electronic clock & date supported.
◇Split screen and fixed template display setting supported.
◇Setting IP address, working time and working day supported.
◇1080P full HD programs display supported.
◇WAN & LAN long-distance setting play/sleep/reboot etc. function supported.
◇Display contents cryptographic protection supported (selectable)
◇Cable network, wifi, touch screen, motion senor and inner camera setting supported.(selectable)
Tailor-made solutions
Zhongxin offers configurable,modular,and option-rich products to satisfy unique requirements.Build walls of any size.Color match the display to the wall or brand colors.Embed open frame monitors into a custom fixture enclosure.Utilize mounting, processing,or professional services for the perfect installation.Zhongxin’s flexibility starts at meeting project requirements and opens up a world of creative possibilities.
When image experience matters
No matter the application,Zhongxin display solutions shine with industry-leading features and performance to improve the visual experience.From digital signage to corporate solutions to control room settings,Zhongxin’s digital displays get the job done.
Commitment to customer service
Zhongxin’s commitment to customer satisfaction is demonstrated before,during,and after the installation with exceptional products and service.Best-in-class warranties and service offerings create additional peace of mind and keep customers returning to Zhongxin for all their display needs.
Specification
Specification
| Panel Parameter | |||||||
| Model No | ZX-343 | ZX-350 | ZX-355 | ZX-365 | ZX-375 | ZX-386 | ZX-398 |
| Panel Size | 43" | 50" | 55" | 65" | 75" | 86" | 98" |
| Panel Typle | TFT lcd screen | TFT lcd screen | TFT lcd screen | TFT lcd screen | TFT lcd screen | TFT lcd screen | TFT lcd screen |
| Panel Brand | LG/BOE/Samsung | LG/BOE/Samsung | LG/BOE/Samsung | LG/BOE/Samsung | LG/BOE/Samsung | LG/BOE/Samsung | LG/BOE/Samsung |
| Resolution | 1920x1080P | 1920x1080P | 1920x1080P | 1920x1080P | 3840X2160 | 3840x2160P | 3840X2160P |
| Optional | 3840x2160P | 3840x2160P | 3840x2160P | 3840x2160P | / | / | / |
| Active Area(HxV) | 941.184x529.416mm | 1073.78x604mm | 1209.6x680.4mm | 1428.48x803.52mm | 1649.66x927.936mm | 1895.04x1065.96mm | 2158.85x1214.35mm |
| Dot Pitch (HxV) | 0.1634x0.4902mm | 0.18642x0.55926mm | 0.210x0.630mm | 0.248x0.744mm | 0.1432x0.4296mm | 0.1645x0.4935mm | 0.1874x0.5622mm |
| Brightness | 350-500cd/m2 | 350-500cd/m2 | 350-500cd/m2 | 350-500cd/m2 | 350-500cd/m2 | 350-500cd/m2 | 350-500cd/m2 |
| View Angle(HxV) | 178°/178° | 178°/178° | 178°/178° | 178°/178° | 178°/178° | 178°/178° | 178°/178° |
| Contrast | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
| Display Color | 16.7M(8bit) | 16.7M(8bit) | 16.7M(8bit) | 16.7M(8bit) | 16.7M(8bit) | 16.7M(8bit) | 16.7M(8bit) |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| Response time | 6ms | 6ms | 6ms | 6ms | 6ms | 6ms | 6ms |
| Lifespan | >60,000hrs | >60,000hrs | >60,000hrs | >60,000hrs | >60,000hrs | >60,000hrs | >60,000hrs |
| Tempered Glass | 4.0mm thickness | 4.0mm thickness | 4.0mm thickness | 4.0mm thickness | 4.0mm thickness | 4.0mm thickness | 4.0mm thickness |

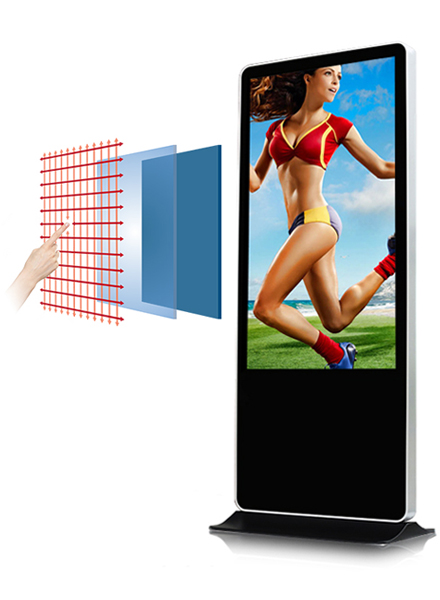

| Touch | IR touch/Capacitive | IR touch/Capacitive | IR touch/Capacitive | IR touch/Capacitive | IR touch | IR touch | IR touch |
| Operation System | |||||||
| Operation System | Android OS 7.1 to 9.1 | Windows System | Windows 7/8/10 | ||||
| CPU | Quad core,Hexa core,Octa core (optional) | CPU | i3/i5/i7 | ||||
| Memory | 1GB/2GB/4GB DDR3 RAM | Memory | 4GB, 8GB, 16GB DDR3 RAM | ||||
| Storage | 8GB/16GB/32GB | Storage | SSD: 128GB, 256GB, 512GB, 500GB/1T HDD | ||||
| Wifi/Bluetooth/Lan | Support | Wifi/Bluetooth/Lan | Support | ||||
| Network card | Integrated 10/100/1000M adaptive | Network card | Integrated 10/100/1000M adaptive | ||||
| Interface | HDMI output*1,RJ45*1,USB*2,SD card solt*1,Power Interface/switch | Interface | HDMI/VGA ouput*1,RJ45*1,USB 2.0*2,USB 3.0*2,Power interface/switch | ||||
| CMS | Support pushing content,remote management | CMS | Support pushing content,remote management | ||||
| Without System | |||||||
| Solution | 8GB to 32GB USB/SD card support | Operation system | No | ||||
| Internal Interface | HDMI input x1,USB 2.0 x1,SD card solt*1,Power port/switch | CPU/Lan/Wifi/Output | No | ||||
| Other Specification | |||||||
| Appearance Color | Black, Silver, Gold,support color customization | ||||||
| Frame Material | Metal case(SPCC), aluminum alloy side | ||||||
| Speaker | 2*5W | ||||||

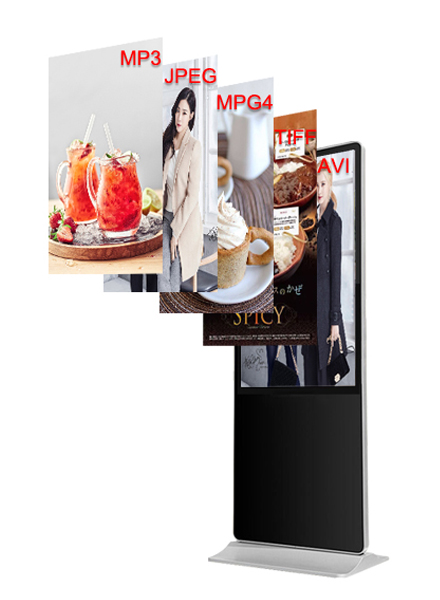

| Video format | MPEG1/MPEG2/MPEG4/ASP/WMV/AVI | ||||||
| Image format | JPEG/BMP/TIFF/PNG/GIF | ||||||
| Audio format | Wave/MP3/WMA/AAC | ||||||
| Image Resolution | Support 2160p, 1080p, 720p, 480p and multiple resolutions | ||||||
| Menu language | English(Defualt)/Multi-language/Chinese | ||||||
| Power Supply | AC100-240V, 50/60Hz | ||||||
| Power consumption | ≤65W-80W | ≤80W-100W | ≤115W-150W | ≤165W-180W | ≤195W-220W | ≤460W-490W | ≤540W-570W |
| Working Temperature | 0°C~50°C | ||||||
| Working Humidity | -20°C - 60°C | ||||||
| Storage Temperature | 10% - 90% no condensation | ||||||
| Storage Humidity | -5%～95% | ||||||
| Accessories | Power cable, Bracket, Screw, Srew wrench, key | ||||||
