Slimline Digital Screens
◇With Integrated USB or Networked Media Player
◇LED backlit,slimline displays offer a true All-In-One Digital Sign which combines the great features of the previous classic model with option to add integrated cloud based media player with Wired
◇WiFi or Cellular networking.
◇This is a technically innovative and unique solution on the market.
Wall Mounted Digital
◇1080 FHD and 2160 UHD display

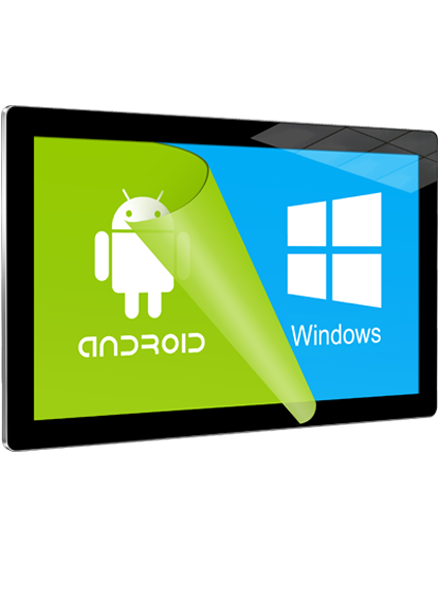

◇Embedded Android/Windows media player, all in one design
◇Commercial designed for 24/7 operation
◇Ultra-thin HD digital signage
◇LED-backlit, energy conservation
◇No button, no switch, nothing can interrupt display
◇On/Off control timer

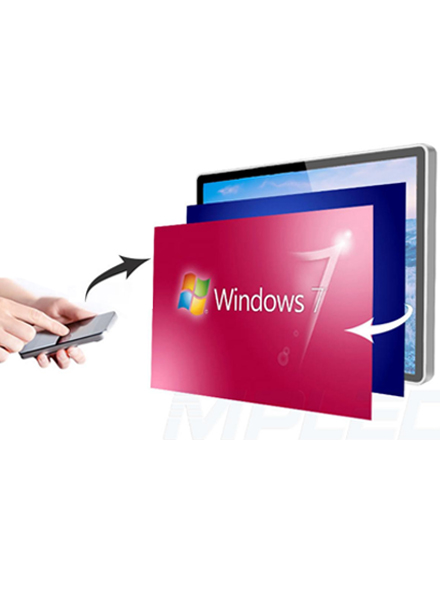

◇Can timing automatically switch display source

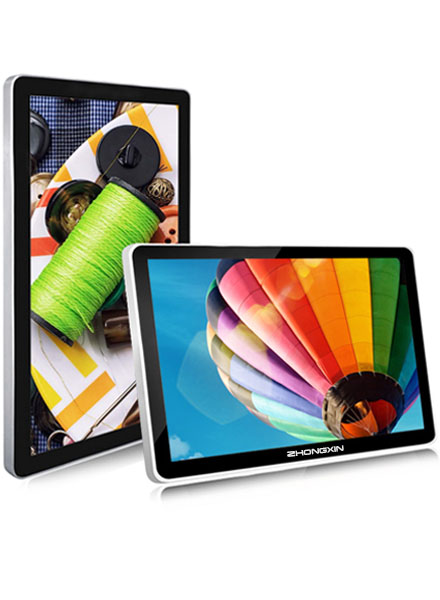

◇Landscape and Portrait supported
◇With Powerful schedule software

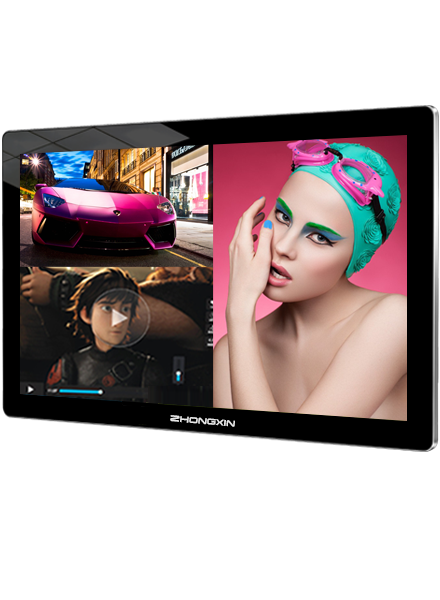

◇Support Split screen display, Video, picture and rolling text
◇Support USB upload content
◇Support network version and Internet version (WIFI Ready)
◇Support 3G SIM card (option)
◇Extra input, HDMI, VGA
◇Android OS platform, easy add customer APP
◇More
When image experience matters
No matter the application, Zhongxin display solutions shine with industry-leading features and performance to improve the visual experience. From digital signage to corporate solutions to control room settings, Zhongxin’s digital displays get the job done.
Easy to Use Software
The bundled Signagelink software is the first graphic design software developed with a focus on digital signage. Quick to learn, easy to master and efficient to work with, both non designers and graphic artists alike will love Signagelink intuitive interface and ease of use. They will also appreciate its comprehensive toolkit and streamlined workflow. For the first time, anyone can create great-looking, high-quality video content with point-and-click, drop-and-drag simplicity for all digital media solutions.
Deep expertise on display
Nearly 10 years of flat panel display experience, pioneering leadership in rear projection displays, and a deep understanding of customer applications is on display at Planar. Serviceability and reliability are designed into every product.
Panel Parameter | |||||||
Model No | ZX-343 | ZX-350 | ZX-355 | ZX-365 | ZX-375 | ZX-386 | ZX-398 |
Panel Size | 43" | 50" | 55" | 65" | 75" | 86" | 98" |
Panel Typle | TFT lcd screen | TFT lcd screen | TFT lcd screen | TFT lcd screen | TFT lcd screen | TFT lcd screen | TFT lcd screen |
Panel Brand | LG/BOE/Samsung | LG/BOE/Samsung | LG/BOE/Samsung | LG/BOE/Samsung | LG/BOE/Samsung | LG/BOE/Samsung | LG/BOE/Samsung |
Resolution | 1920x1080P | 1920x1080P | 1920x1080P | 1920x1080P | 3840X2160 | 3840x2160P | 3840X2160P |
Optional | 3840x2160P | 3840x2160P | 3840x2160P | 3840x2160P | / | / | / |
Active Area(HxV) | 941.184x529.416mm | 1073.78x604mm | 1209.6x680.4mm | 1428.48x803.52mm | 1649.66x927.936mm | 1895.04x1065.96mm | 2158.85x1214.35mm |
Dot Pitch (HxV) | 0.1634x0.4902mm | 0.18642x0.55926mm | 0.210x0.630mm | 0.248x0.744mm | 0.1432x0.4296mm | 0.1645x0.4935mm | 0.1874x0.5622mm |
Brightness | 350-500cd/m2 | 350-500cd/m2 | 350-500cd/m2 | 350-500cd/m2 | 350-500cd/m2 | 350-500cd/m2 | 350-500cd/m2 |
View Angle(HxV) | 178°/178° | 178°/178° | 178°/178° | 178°/178° | 178°/178° | 178°/178° | 178°/178° |
Contrast | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 | 4000:1 |
Display Color | 16.7M(8bit) | 16.7M(8bit) | 16.7M(8bit) | 16.7M(8bit) | 16.7M(8bit) | 16.7M(8bit) | 16.7M(8bit) |
Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
Response time | 6ms | 6ms | 6ms | 6ms | 6ms | 6ms | 6ms |
Lifespan | >60,000hrs | >60,000hrs | >60,000hrs | >60,000hrs | >60,000hrs | >60,000hrs | >60,000hrs |
Tempered Glass | 4.0mm thickness | 4.0mm thickness | 4.0mm thickness | 4.0mm thickness | 4.0mm thickness | 4.0mm thickness | 4.0mm thickness |
Touch | IR touch/Capacitive | IR touch/Capacitive | IR touch/Capacitive | IR touch/Capacitive | IR touch | IR touch | IR touch |
Operation System | |||||||
Operation System | Android OS 7.1 to 9.1 | Windows System | Windows 7/8/10 | ||||
CPU | Quad core,Hexa core,Octa core (optional) | CPU | i3/i5/i7 | ||||
Memory | 1GB/2GB/4GB DDR3 RAM | Memory | 4GB, 8GB, 16GB DDR3 RAM | ||||
Storage | 8GB/16GB/32GB | Storage | SSD: 128GB, 256GB, 512GB, 500GB/1T HDD | ||||
Wifi/Bluetooth/Lan | Support | Wifi/Bluetooth/Lan | Support | ||||
Network card | Integrated 10/100/1000M adaptive | Network card | Integrated 10/100/1000M adaptive | ||||
Interface | HDMI output*1,RJ45*1,USB*2,SD card solt*1,Power Interface/switch | Interface | HDMI/VGA ouput*1,RJ45*1,USB 2.0*2,USB 3.0*2,Power interface/switch | ||||
CMS | Support pushing content,remote management | CMS | Support pushing content,remote management | ||||
Without System | |||||||
Solution | 8GB to 32GB USB/SD card support | Operation system | No | ||||
Internal Interface | HDMI input x1,USB 2.0 x1,SD card solt*1,Power port/switch | CPU/Lan/Wifi/Output | No | ||||
Other Specification | |||||||
Appearance Color | Black, Silver, Gold,support color customization | ||||||
Frame Material | Metal case(SPCC), aluminum alloy side | ||||||
Speaker | 2*5W | ||||||
Video format | MPEG1/MPEG2/MPEG4/ASP/WMV/AVI | ||||||
Image format | JPEG/BMP/TIFF/PNG/GIF | ||||||
Audio format | Wave/MP3/WMA/AAC | ||||||
Image Resolution | Support 2160p, 1080p, 720p, 480p and multiple resolutions | ||||||
Menu language | English(Defualt)/Multi-language/Chinese | ||||||
Power Supply | AC100-240V, 50/60Hz | ||||||
Power consumption | ≤65W-80W | ≤80W-100W | ≤115W-150W | ≤165W-180W | ≤195W-220W | ≤460W-490W | ≤540W-570W |
Working Temperature | 0°C~50°C | ||||||
Working Humidity | -20°C - 60°C | ||||||
Storage Temperature | 10% - 90% no condensation | ||||||
Storage Humidity | -5%~95% | ||||||
Accessories | Power cable, Bracket, Screw, Srew wrench, key |
